ODM / OEM Radio Shuttle Pallet Racking
Products Description

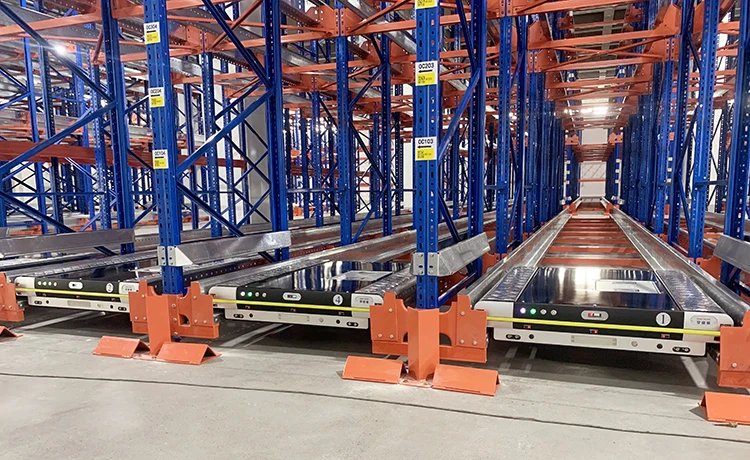

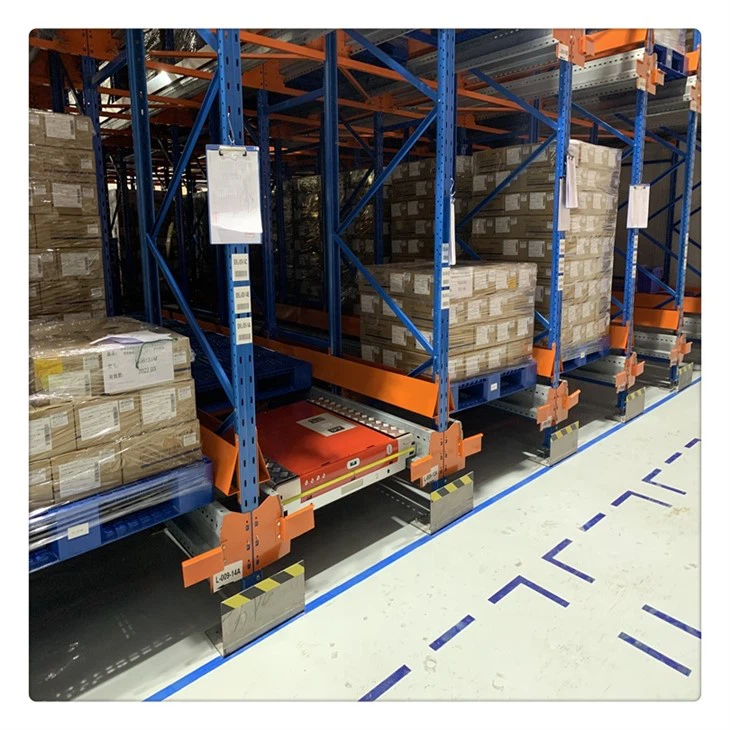

Radio Shuttle Pallet Racking represents an innovative solution for semi-automated warehouse management, achieving up to 90% space utilisation. Equipped with the Shuttle Car that can be controlled by a remote unit, this process of goods in and out of the rack can be speedy and accurate with the position control system.
Detail Specification
|
Type |
ODM / OEM Radio Shuttle Pallet Racking |
|
Dimension |
Width:Customized |
|
Box Beam |
80x50, 100x50, 120x50, 130x50, 140x50, 160x50mm thickness 1.5-2.0mm |
|
Upright |
80x60, 90x70, 100x70, 120x95mm thickness: 1.8-3.0mm |
|
Surface treatment |
Electrostatic powder coating surface |
|
Color |
RAL color per customer's requirement |
|
Weight capacity |
500--5000kg |
|
Package |
Export package by steel straps and plastic filims. |
|
OEM |
Available |

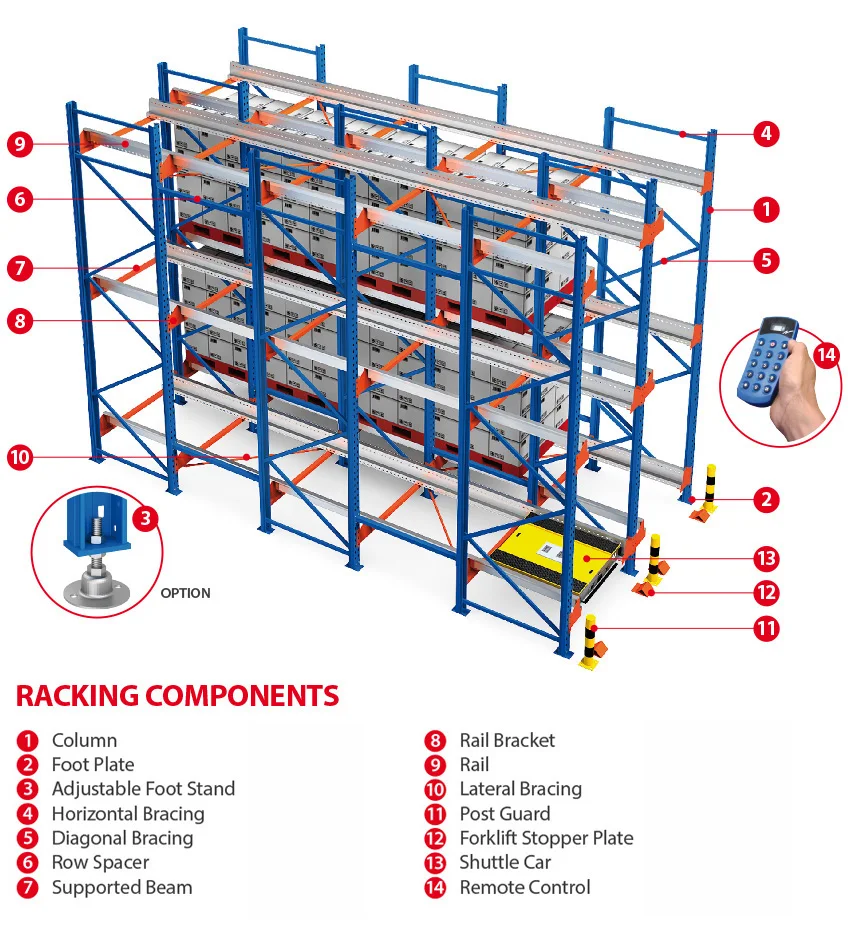

Products Component

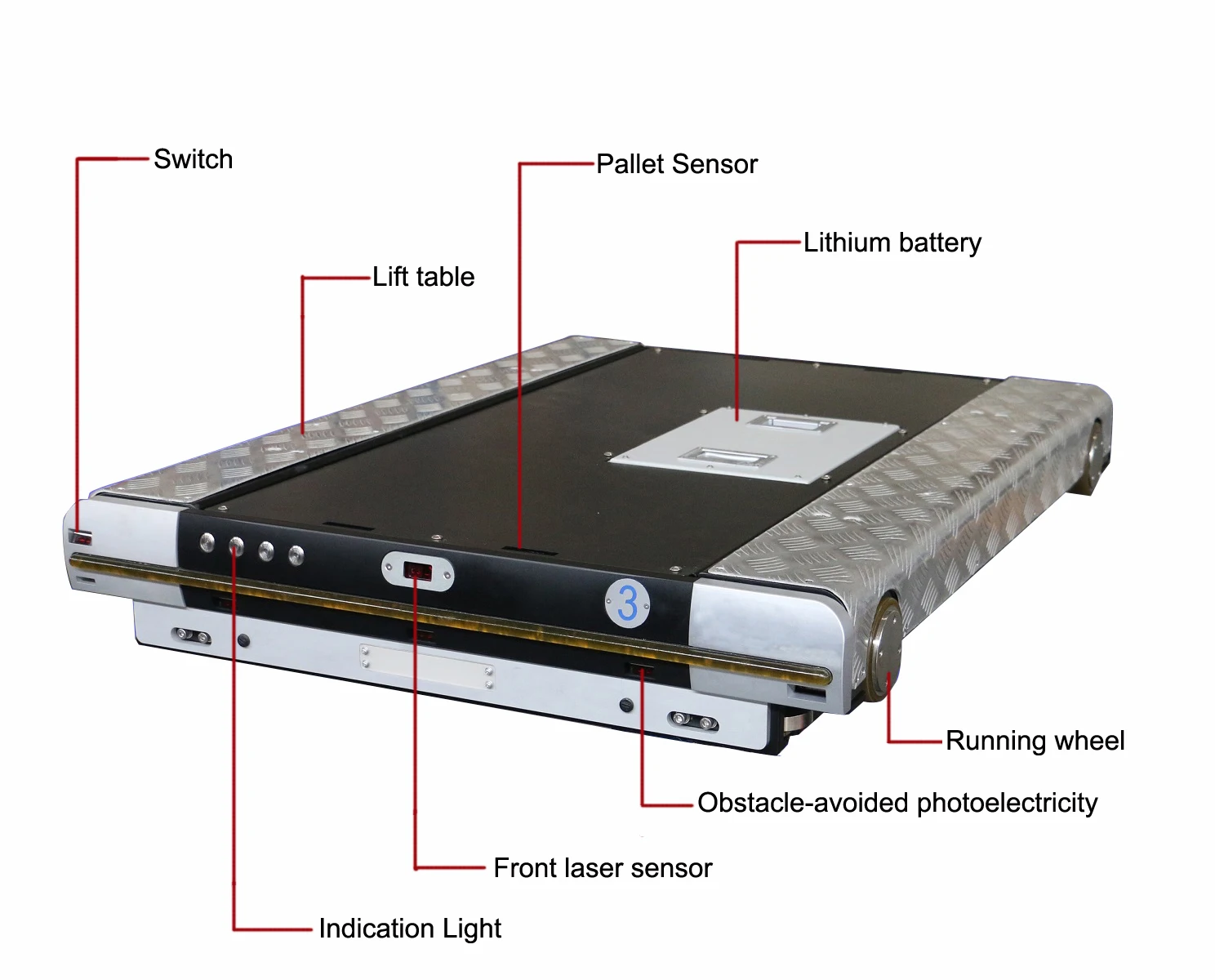

Shuttle Car

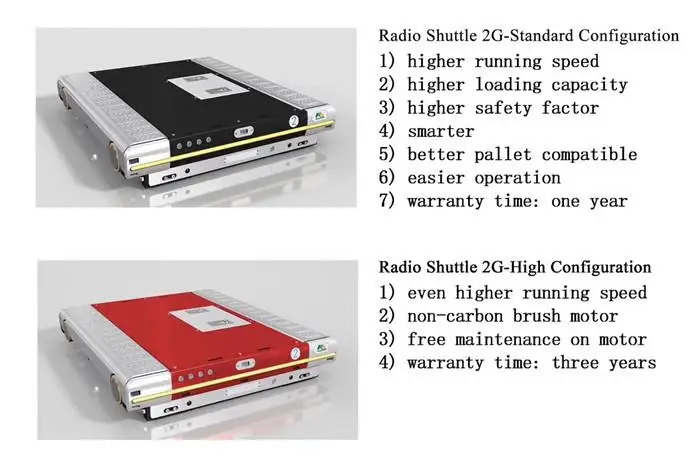

Radio Shuttle 2G Configuration
Higher Running Speed;
Higher Loading Capacity;
Higher Safety Factor;
Smarter;
Better Pallet Compatible;
Easier Operation;
Warranty Time: 1 year
|
Parameters |
Standard type |
Low temperature type |
Advanced type |
|
Loading capacity |
Max 1500kg |
|
Running speed |
Vmax_empty:1.0m/s Vmax_full:0.8m/s |
Vmax_empty:1.0m/s Vmax_full:0.8m/s |
Vmax_empty:1.2m/s Vmax_full:1.0m/s |
|
Drive motor |
Brush servo motor 48VDC 550W |
Imported non-brush servo motor 48VDC 600W |
|
Servo driver |
Domestic customized servo driver |
Imported non-brush servo driver |
|
Lift motor |
Servo motor 48VDC 400W |
|
Brush motor 48VDC 400W |
|
Lift height |
40mm |
|
Move positioning:Laser |
Germany P+F/SICK |
|
Pallet positioning:Laser |
Germany P+F/SICK |
|
Lift control: approach switch |
Germany P+F |
|
Object detection |
Germany P+F/SICK |
|
Control system |
Siemens S7-200 PLC |
Siemens S7-1200 PLC |
Siemens S7-200 PLC |
|
Remote controller |
Imported Tele-radio |
|
Power supply |
Lithium battery |
|
Battery capacity |
48V,30AH |
48V,40AH |
48V,40AH |
|
Running time |
≥ 8h |
|
Charging time |
3H |
|
Battery lifetime |
Charge times≤1000 |
|
Noise |
≤60db |
|
Painting |
Frame (black) |
|
Ambient temperature |
Temp : 0℃~50℃ |
Temp : -25℃~50℃ |
Temp: 0℃~50℃ |
Products Feature
The advantages of shuttle racks include:
1. High efficiency: Shuttle racks can achieve rapid storage and retrieval of goods, improving the work efficiency of the warehouse.
2. High space utilization: Shuttle racks can make full use of the space of the warehouse and improve space utilization.
3. Flexibility: Shuttle racks can be flexibly adjusted according to the type and quantity of goods to meet different storage needs.
4. Safety: Shuttle racks use advanced safety protection devices to effectively protect the safety of goods and personnel.
5. Scalability: Shuttle racks can be expanded as needed to meet the growing storage needs.
The disadvantages of shuttle racks include
1. High investment cost: Shuttle racks require high investment costs, including the purchase and maintenance of equipment such as racks, shuttles, and forklifts.
2. High maintenance cost: Shuttle racks require regular maintenance to ensure their normal operation, which also increases maintenance costs.
3. High technical requirements for operators: Shuttle racks require operators to have a certain level of technology to ensure the safety and efficient storage and retrieval of goods.
4. High requirements for shelves, rails, and precision: Shuttle racks have high requirements for shelves, rails, and precision. If these devices fail, it takes a long time to recover.
In general, shuttle racks are an efficient, flexible, and safe storage rack, suitable for industries with large quantities and small samples and large batches of single varieties. They can improve warehouse space utilization, increase work efficiency, reduce operation waiting time, increase safety factor, and less overall investment compared to other types of racks.
