Heavy Duty Warehouse Metal Radio Shuttle Rack

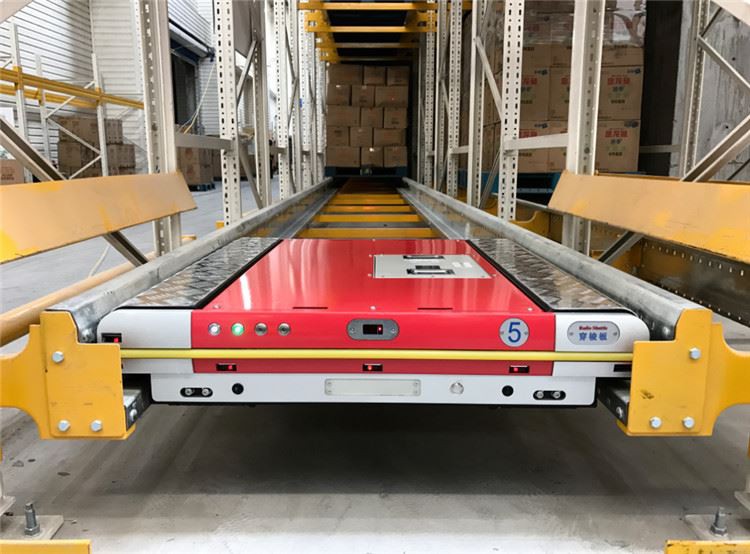

Radio shuttle rack is a high-density storage system. The shuttle cart, which is controlled by a wireless remote, takes the pallets in and out of the racking system. The forklift don’t need to enter the storage area. The first pallet’s location at either end is where the forklift loads and unloads the goods.

The advantage of shuttle pallet rack

— High density storage style, high warehouse utilization rate
— High work efficiency, greatly reduce operating time
— Operating flexibility, the access of goods can be FIFO, can also be FILO
— And good safety, reduce damage, improve safety productivity

The working principle of shuttle pallet rack

— Inventory: The goods are put on the front end of the storage tunnels by the forklift truck, through radio remote control shuttles, can carry pallets of goods in track operation;
— Pick: radio remote control shuttle carries the pallet from the farthest end of the storage tunnel to the nearest end of the racking system, put down the pallet from the racking system by the forklift truck;
— Mobile shuttle : The shuttle can be place in different storage tunnel by the forklift, several storage tunnels can share a shuttle. The quantity of shuttle is depend on the depth of the storage tunnel, total of goods, shipping quantity, shipment frequency and other factors.

Shuttle rack technical parameters

— Load: 1000~1500kg
— Speed: 0.7-0.9 M / sec(unload)
— Speed:0.6-0.8 M / sec(load)
— Power unit: lithium manganese battery
— Rated voltage: 26 V
— Battery: time greater than 8 hours
— Sensing range: remote sensing range within 50 meters
