Multi-Level Mezzanine Floor

Products Description

Pallet Rack consists of upright frames, beams, pallet support, and other standard components. H-bracing and D-bracing connect with the upright part by self-locking bolts; they can effectively prevent racking from losing balance caused by the release of bolts. The beam can be easily adjusted every 3" (76.2mm) on the upright to meet your varied loading height requirements.

Our warehouse pallet storage rack is easily utilized with just standard forklifts and hand trucks. Pallet racking is an ideal starting point for all your warehouse and storage needs.

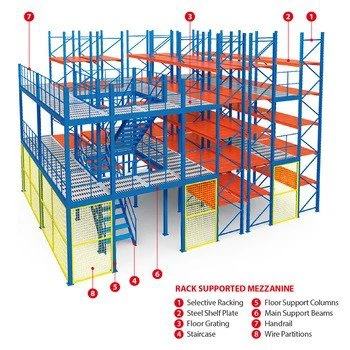

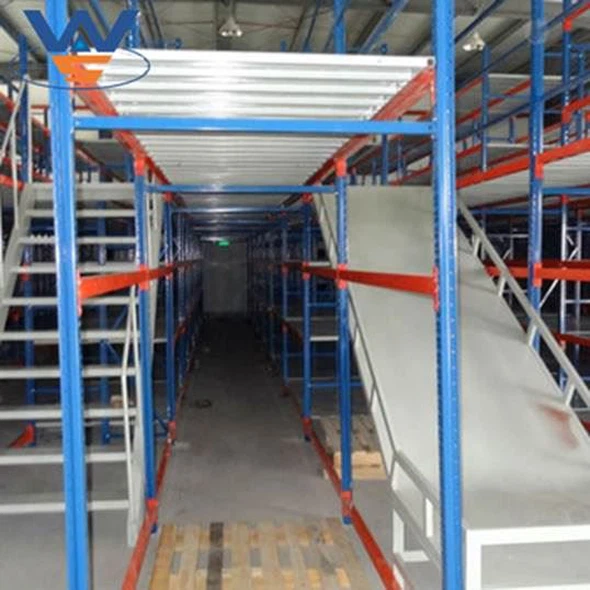

Warehouse Mezzanine Platform Racking System

Mezzanine Floor Feaure

Versatility and flexibility to meet any storage needs:

Heights from 1800 mm to 5000 mm

Frame widths from 400 mm to 1500 mm

Shelf loading capacity from 250 to 600 Kg per level

Maximum load per bay up to 5000 Kg

Uprights available inΦ 1.5 to 2.0 mm steel

Choice of steel or timber shelves (for steel, powder-coating or zinc)

1. Features:	Pallets can be located, accessed and moved individually. Rapid handling of almost all types of palletised goods. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. Strength and rigidity prevents compression damage to goods. Bottom level of pallets can be stored on the floor, lowering structure costs.
2. Load Capacity & Dimension:	Loading capacity: 500-4,000 kgs UDL/beam level. Height: 1,000-11,000mm Depth: 400-1,500mm Length: 1,500-3,300mm Specail sizes also avaiable to specific storage needs.
3. Main Parts Specs:	Upright section: 80602.0, 90702.0, 100702.0, 120952.0-2.5mm, etc. Box beams section: 80501.5, 100501.5, 110501.5, 120501.5-2.0, 140501.5-2.0, 160501.5-2.0, 180502.0mm, etc., Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
4. Material:	High-quality steel
5. Finish:	High-quality Powder Coating Finish.

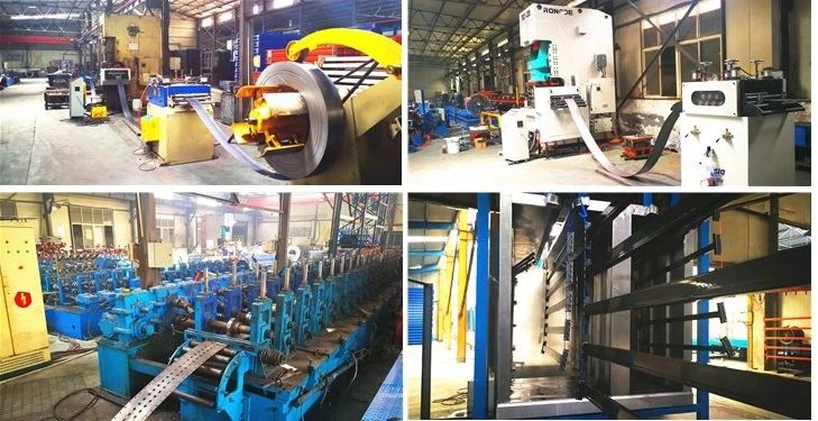

6. Quick Delivery .	Within 25 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery.
