Medium Duty Shelving

Medium Duty Shelving

Medium duty shelving are a type of storage shelves. They are classified and named according to the load capacity of the shelves. According to this classification principle, medium-duty shelves are between light-duty shelves and heavy-duty shelves, hence the name medium-duty shelves.

Product classification

Medium-duty shelves are standard in appearance, widely applicable, easy to install and disassemble, with 75mm pitch adjustment, and load capacity of 100kg~350kg; non-standard type has large span and large load capacity, 75mm pitch adjustment, novel appearance, and load capacity of 300kg~1000kg. Medium-duty shelves are sturdy and strong, with large load capacity. Medium-duty shelves are widely used in shopping malls, supermarkets, enterprise warehouses and institutions. They are usually divided into medium-duty A-type shelves, medium-duty B-type shelves and medium-duty C-type shelves. Generally, they can be disassembled and assembled, and the height of the shelves can be adjusted; the load-bearing layer can bear 200-800 kg; all metal parts of the shelves are rust-proofed, and the surface is electrostatically sprayed; medium-duty shelves are suitable for storing goods in large, medium and small warehouses. In actual application, they are divided into medium-duty A-type shelves and medium-duty B-type shelves.

Medium A-type shelves

No bolt design, easy installation, reliable structure. Steel shelves, columns, beams are used, and the entire shelf is not bolted, which is convenient for installation and disassembly. It adopts the main and auxiliary connection forms, and has strong stability.

Features of medium A-type shelves:

Easy to install, bolted, main and auxiliary connection forms, and has stability.

The top, bottom, frame connecting rods, column trays, chips and plug-ins of the medium-sized shelves are fully fixed with pins, which is easy to operate.

The maximum load under the relative length of the bearing strength is 300kg/layer. The shelves can be freely adjusted up and down at a spacing of 50mm.

The surface of the shelf is rust-free and spray-painted.

The surface color can be selected according to the customer's choice. The overall appearance of the shelf is beautiful, generous, sturdy and durable.

The relevant specifications of the A-column are: 55×5.5×1.5 mm special rack column profile.

Adopt high-quality steel rolling mill machine to automatically punch and flatten, and cut according to the height specified by the customer.

The column tray connecting rod is made of high-quality cold plate bending and stamping.

The plate layer is made of high-quality cold plate (SPCC), divided into strips, flattened and bent, and welded for reinforcement.

No bolt connection, simple assembly and disassembly, beautiful appearance, and can assemble multiple layers of racks.

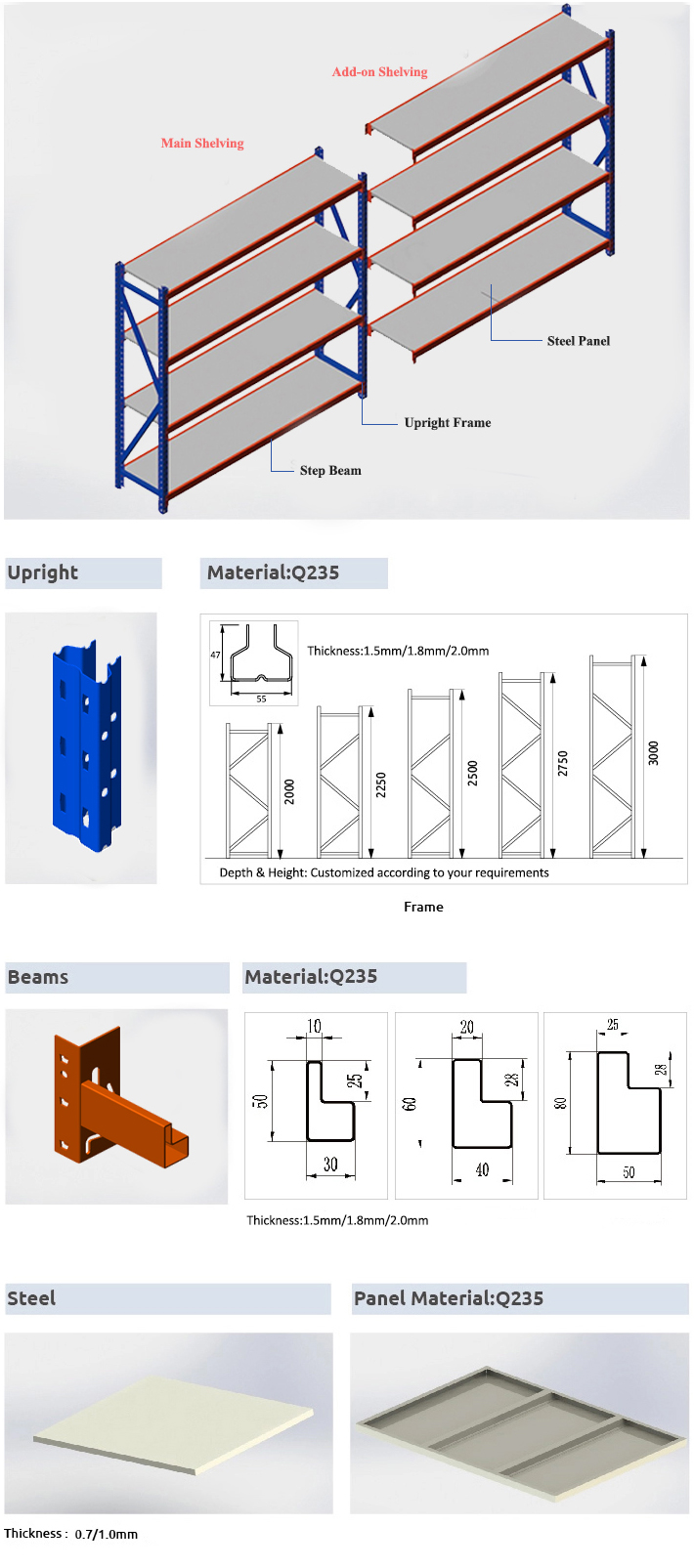

  Loading capacity chart

Medium B-type shelves

Using cooling plate Q235 steel (SPCC) and manufacturing high quality. Use beams and columns with connectors and beams in the form of a frame. Suitable for receiving goods by people. B-type medium shelves are used in various industries, with low cost, safety, reliability, and very simple assembly and disassembly. It can be used alone or in combination with the main and auxiliary frames.

Features of medium B-type shelves:

Medium B-type shelves are used in various industries, with low cost, safety and reliability, and very simple assembly and disassembly. They can be assembled with the main and auxiliary frames or used alone.

The medium shelf type B columns and diagonal braces are connected by bolts, and the columns are connected with P-type steel silent beam plugs and sockets to form the shelf frame and fixed with safety pins. The structure is simple and reliable.

Each layer of the shelf can be adjusted by a distance of 50 steps.

The medium B-type shelves are usually no more than 3 meters high, and are based on the construction of multi-layer shelves.

The specifications of the medium B-type shelf columns are: 55 * 2.0 mm special shelf 47 mast profile.

Adopt high-quality steel rolling mill machine to automatically punch holes, according to the height specified by the customer and cut off.

The beam adopts cold-rolled P type, and the specifications are: 50×30×40, 64, 80 50.

During the use of medium duty shelving, you may encounter problems such as insufficient load-bearing capacity, loose installation, damage caused by improper use, and untimely maintenance. In order to solve these problems, users should choose the appropriate shelf load-bearing capacity, install the shelves correctly, comply with the shelf use specifications, and perform regular maintenance and inspections. Only in this way can the safe and reliable operation of medium-sized shelves be ensured and storage efficiency be improved.
