Drive-through racking system
Drive-through racking system is based on the storage by accumulation principle, which enables the highest use of available space in terms of both area and height. Drive-in racking is designed for the storage of homogeneous products. It accommodates a large number of pallets.
Drive-in racking provides high-density and very space-efficient storage. Drive-In or Double-Access Systems (Drive-through Racking) consist of continuous lanes of racking with only a single load and retrieval aisle. Loading and unloading is undertaken by means of counter balance or reach trucks that drive down each lane into the racks.
|
1. Style: |
Drive through racking system |
|
2. Certification: |
CE, ISO,SGS |
|
3. Suitable for Pallet Size: |
800/1000/1100/1200 * 800/1000/1100/1200mm |
|
4. Customized Pallet Sizes Accepted: |
Yes |
|
5. Materials |
Q235B Steel |
|
6. Price |
Factory EXW price |
|
7. Surface Treatment |
Powder coated |
|
8. Pallet Weight: |
1500kgs |
|
9. Storage Style: |
FIFO or FILO |
|

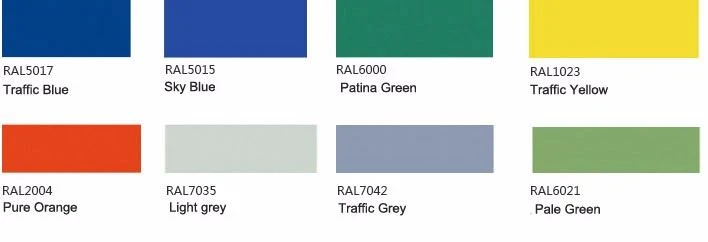

10. Standard Color: |
Blue, orange, green, red, grey |
|
11. Special Color Available: |
Yes |
|
12. Standard Exporting Package: |
Metal strip, film, paper board and master carton. |
Composition Characteristics
Storage shelves and drive through racks are multi-door shelves connected by lattice columns, and the palletized goods are stored one after another on the cantilever beam along the depth direction. This mold rack structure allows the forklift operation channel and the goods storage space to be shared, greatly improving the space and site area utilization of the warehouse, but the goods in the same operation channel cannot be first-in-first-out. It is suitable for large quantities, small varieties, or goods in the operation channel that flow to the same customer together, such as beverages, dairy products, tobacco, low-temperature frozen storage, standard specifications of home appliances, chemicals, clothing, and other industries. According to statistics, drive-in shelves can achieve the maximum storage density, the effective space utilization rate can be increased to 90% at most, and the site area utilization rate can reach more than 60%!
A Wide Range of Uses
1. Large batches of goods with few varieties: This type of rack is suitable for storing a single variety or a few categories of goods, which is convenient for large-scale storage and handling.
2. Frequent storage and retrieval of goods: Since the forklift can directly drive into the shelf, it is suitable for occasions where goods are frequently stored and retrieved, which improves work efficiency.
3. Limited storage space: Drive-through racks can effectively utilize warehouse space, increase storage density, and are suitable for warehouses with limited space.
4. Industries with high requirements for first-in-first-out: For example, in industries such as food and beverages, drive-through racks can easily implement the first-in-first-out principle of goods.
5. Cold storage environment: Drive-through racks are suitable for special environments such as cold storage and can withstand operations under low temperature conditions. It should be noted that the height of drive-through racks is generally low, usually below 6 meters. In addition, in order to ensure safe operation, it is necessary to reasonably plan the forklift driving path and set up corresponding protective measures.
Our advantage
The cargo storage channel is also the forklift storage and transportation channel, which is a form of shelf with higher storage density.
It is usually used for the storage of goods with fewer varieties but large batches, and the requirements for cargo picking are not high.
Based on the conventional scheme of three-layer cargo in the corridor shelves, the effective storage capacity of the warehouse can be increased by more than 100%. In comparison, the investment cost is controlled and the benefits are significantly improved.
Goods follow the first-in-last-out principle, which is suitable for most handling machinery storage and transportation operations.
Products Show
