Product Overview
The Warehouse Stacking Wire Mesh Cage is designed for warehouse storage, material handling and internal transportation in factories, logistics centers and industrial facilities.
Made from Q235 steel, the cage features a welded wire structure with a foldable and stackable design. Standard models are available with load capacities from 300 kg to 2,000 kg, making them suitable for light-duty, medium-duty and heavy-duty storage applications.
The cage can be handled by forklifts, hydraulic pallet trucks, cranes and trolleys. Electro-galvanized and powder-coated finishes are available for different operating environments.
Key Features
Heavy-Duty Load Capacity
Different models are available with load capacities from 300 kg to 2,000 kg, providing suitable options for different warehouse and industrial storage requirements.

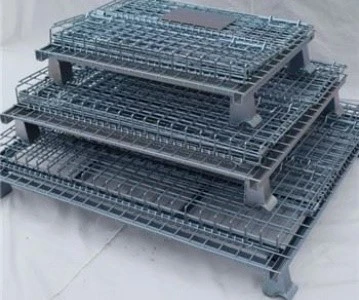

Foldable Design
The collapsible structure helps reduce occupied space when the cages are empty, making storage and return transportation more efficient.

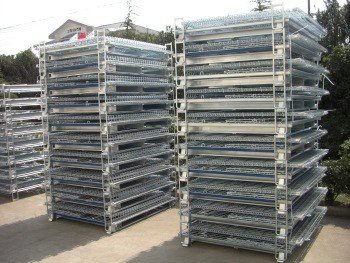

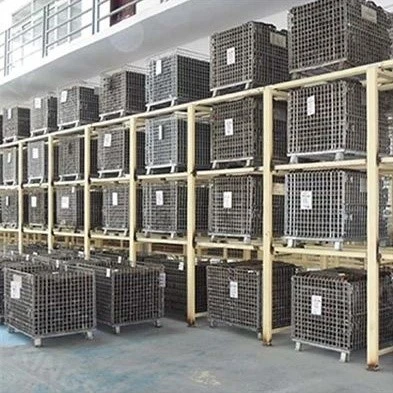

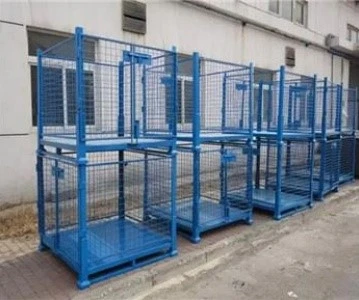

Stackable Structure
The cages can be stacked to improve vertical warehouse space utilization.
Easy Material Handling
The cage is designed for convenient handling with:
- Forklifts
- Hydraulic pallet trucks
- Cranes
- Trolleys

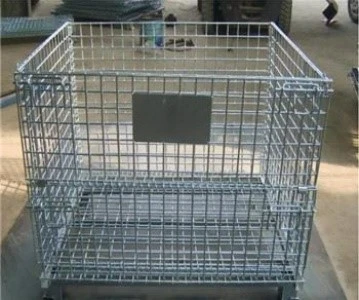

Durable Surface Treatment
Electro-galvanized and powder-coated finishes are available according to different storage environments and corrosion-resistance requirements.

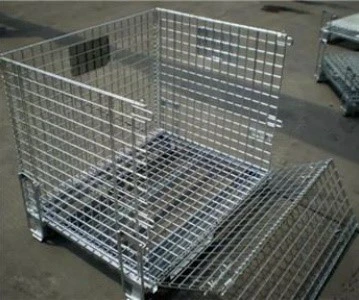

Easy Access to Stored Goods
The drop gate design allows operators to access goods more conveniently, including when cages are stacked.
Specifications
Standard wire mesh cages are available in different dimensions, load capacities and mesh configurations.
| Model | Load Capacity (kg) | Volume (m³) | Stackable Levels | Length (mm) | Width (mm) | Height (mm) | Leg Height (mm) | Wire Diameter (mm) | Mesh Pitch (mm) |
|---|---|---|---|---|---|---|---|---|---|
| WS-01 | 700 | 0.22 | 4 | 800 | 600 | 640 | 100 | 6.0 | 50×50 |
| WS-02 | 500 | 0.22 | 4 | 800 | 600 | 640 | 100 | 6.0 | 50×100 |
| WS-03 | 1200 | 0.52 | 4 | 1000 | 800 | 840 | 100 | 6.0 | 50×50 |
| WS-04 | 800 | 0.52 | 4 | 1000 | 800 | 840 | 100 | 6.0 | 50×100 |
| WS-05 | 1200 | 0.28 | 4 | 1000 | 800 | 500 | 100 | 6.0 | 50×50 |
| WS-06 | 800 | 0.28 | 4 | 1000 | 800 | 500 | 100 | 6.0 | 50×100 |
| WS-07 | 500 | 0.52 | 4 | 1000 | 800 | 840 | 100 | 5.0 | 50×50 |
| WS-08 | 1500 | 0.84 | 4 | 1200 | 1000 | 890 | 100 | 6.0 | 50×100 |
| WS-09 | 800 | 0.84 | 4 | 1200 | 1000 | 890 | 100 | 6.0 | 50×50 |
| WS-10 | 800 | 0.22 | 4 | 800 | 600 | 640 | 100 | 6.4 | 50×50 |
| WS-11 | 600 | 0.22 | 4 | 800 | 600 | 640 | 100 | 6.4 | 50×50 |
| WS-12 | 1000 | 0.22 | 4 | 1000 | 800 | 840 | 100 | 6.4 | 50×100 |
| WS-13 | 1500 | 0.52 | 4 | 1000 | 800 | 840 | 100 | 6.4 | 50×50 |
| WS-14 | 2000 | 0.84 | 4 | 1200 | 1000 | 890 | 100 | 6.4 | 50×100 |
| WS-15 | 1000 | 0.84 | 4 | 1200 | 1000 | 890 | 100 | 6.4 | 50×50 |
| WS-16 | 300 | 0.15 | 4 | 800 | 500 | 540 | 100 | 1.8 | 50×100 |
Product Details

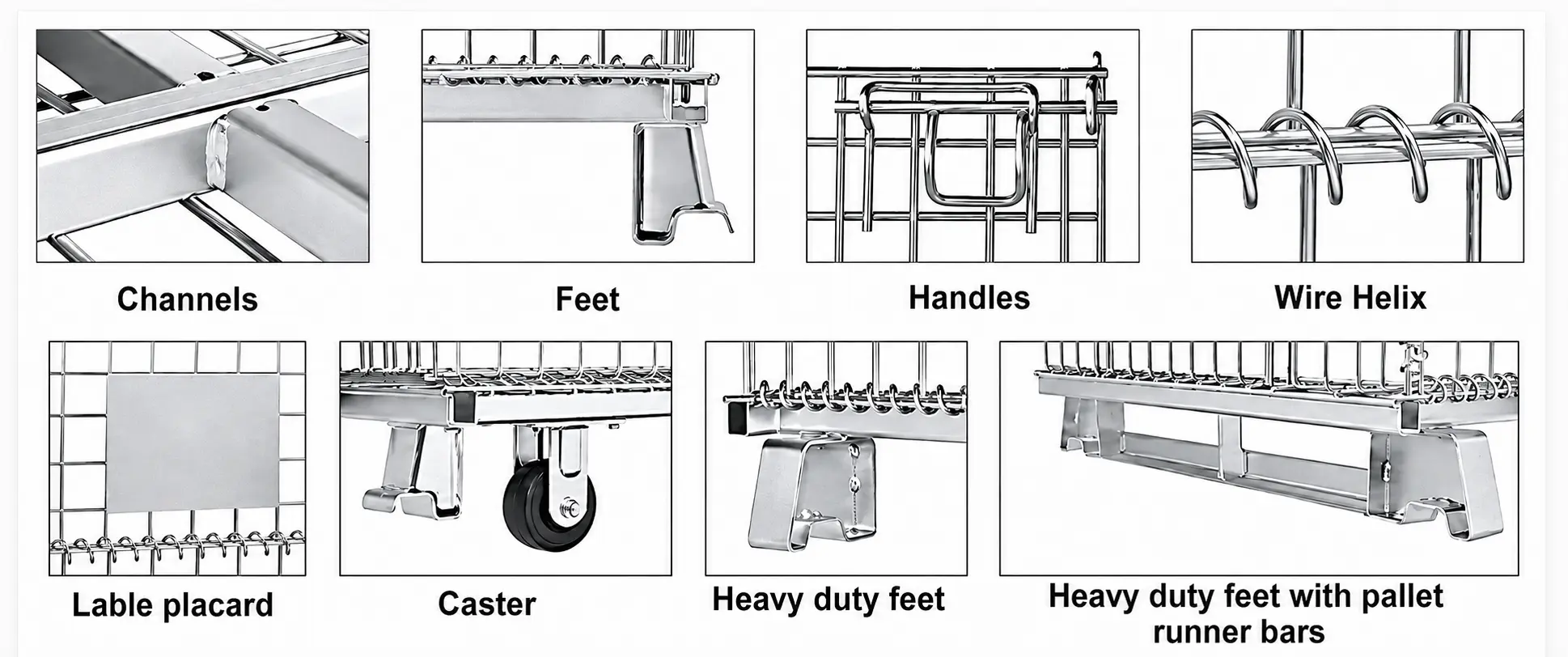

Customization Options & Accessories
We support customized wire mesh cages according to different storage and handling requirements.
Available options include:
- Custom dimensions and load capacity
- Wire diameter and mesh size
- Surface treatment
- Casters, shelves and dividers
- Heavy-duty feet and pallet runner bars
- Label placards and other accessories
If you have drawings, send them to us for evaluation and quotation. If not, provide the required size, load capacity and application, and we can recommend a suitable configuration.

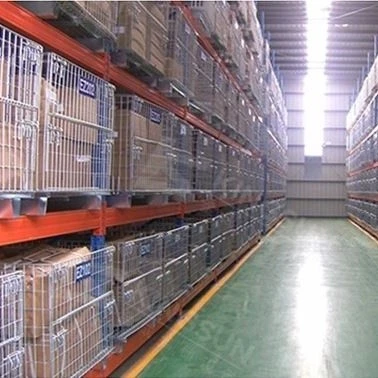

Typical Applications
Warehouse stacking wire mesh cages are suitable for:
- Automotive parts
- Machinery components
- Hardware products
- Metal parts
- Plastic components
- Production materials
- Warehouse inventory
- Work-in-process goods
- Recyclable materials
- Logistics turnover goods
The open wire mesh structure provides good visibility of stored goods and allows warehouse operators to identify inventory more easily.
How to Choose the Right Wire Mesh Cage
Choosing the right model depends on the goods being stored and the warehouse operating conditions.
1. Confirm Cargo Dimensions
Measure the length, width and height of the goods to determine the required internal cage dimensions.
2. Confirm Load per Cage
Choose the appropriate load level according to the maximum cargo weight:
- Light Duty: 300–500 kg
- Medium Duty: 500–800 kg
- Heavy Duty: Over 800 kg
- Maximum Standard Capacity: Up to 2,000 kg
3. Check Handling Equipment
Confirm whether the cage will be handled by forklift, hydraulic pallet truck, crane or trolley.
4. Confirm Stacking Requirements
If the cages will be stacked while loaded, provide the required stacking height and operating conditions before ordering.
5. Select the Surface Treatment
Choose electro-galvanized or powder-coated finishing according to the warehouse environment and corrosion-resistance requirements.
FAQ
Get a Quote for Your Wire Mesh Cage
For an accurate quotation, please provide:
- Required dimensions
- Load per cage
- Required quantity
- Type of goods
- Handling equipment
- Stacking requirements
- Surface treatment
- Required accessories
- Destination country or port
Send us your storage requirements and our team will recommend a suitable wire mesh cage configuration.
